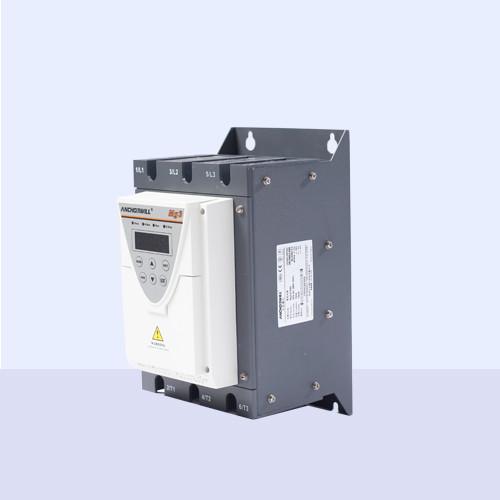

MG3 Soft Starter Water Pump Soft Starter
Product main features
Perfect pump control
By means of special algorithms for starting and stopping pumps and
fans, e.g. quadratic torque control, this is an effective way of
controlling the starting and stopping of pumps and fans.
Compact design
Compact and attractive design saves installation space.
Stop function
Perfect pump shutdown function, effectively solving the "water
hammer effect" and alleviating mechanical shock, increasing the
service life of the equipment.
Modularized design
A variety of expandable function modules, to meet the individual
needs of customers, easy to upgrade and maintain the equipment.
Communication function
Optional ModbusRtu communication protocol is easy to realize group
control.
| Item | Project Description |
| Applicable standards | GB14048.6-2016(IEC60947-4-2:2011) |
| Applicable motor type | Squirrel-cage three-phase asynchronous motors |
| Motor power | 18A ～ 1260A(7.5～630kW) |
| input | Three-phase power supply | AC380V:50Hz±5% |
| Control power supply | AC220V:50Hz±5%. |
| Allowable Voltage | Continuous voltage fluctuation not more than ±10%, short-term
fluctuation not more than 15%～+10 |
| Fluctuation range | Voltage imbalance rate:<3%;frequency:±5% |
| Adjustable start time | 1～60s adjustable |
| Adjustable stopping time | 0～60s adjustable |
| I/0 | Logic Inputs | 3 logic inputs (start, stop, emergency stop) |
| Relay outputs | 2 relay outputs (bypass, alarm (normally open, normally closed)) |
| Run command input | LED keypad display unit given, control terminal given |
| Protection and monitoring | Phase failure, operation overcurrent |
Simple operation
LCD menu display, good human-machine interaction interface, simple,
Quick, no need for professional personnel to use. Support
hot-swappable
personalized display device.
Better Protection Functions
A variety of motor protection functions, such as: phase failure,
over-voltage, under-voltage, overload, over-temperature,
over-current, start-up, etc.
voltage, overload, over-temperature, over-current, start timeout,
etc., which
Ensure that the motor and soft starter will not be damaged in case
of faults and misoperation.
motor and soft starter will not be damaged in case of malfunction
and misoperation.
High speed
Zero operation response time, fast and accurate.
Three-proof technology
The internal control boards all adopt the harsh three-proof paint
process, which can effectively resist water, dust, humidity, salt
spray and corrosive gases.
resist water, dust, humidity, salt spray, corrosive gases, etc.
etc.
Patents
As many as 13 invention, utility model and appearance patents.
