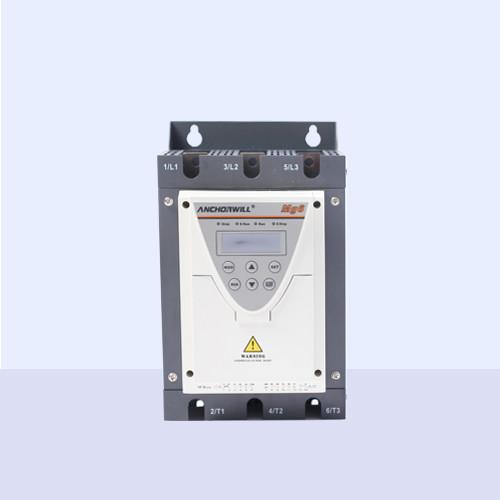

| Item | Project Description |
| Standard | GB14048.6-2016(IEC60947-4-2:2011) |
| Applicable motor type | Squirrel-cage three-phase asynchronous motors |
| Motor power | 15A～ 1260A(7.5～630kW) |
| Three-phase power supply | AC380V:50Hz/60Hz±5% |
| Control power supply | AC220V:50Hz/60Hz±5% |
| importation | Allowable Voltage | Continuous voltage fluctuation not more than ±10%, short-term
fluctuation not more than 15% to +10% |
| fluctuation range | Voltage imbalance rate:<3%;Frequency:±5 |
| Adjustable start time | 1～60s adjustable |
| Adjustable stopping time | 0～60s adjustable |
| I/0 | Logic Inputs | 3 logic inputs (start, stop, emergency stop) |
| 2 logic inputs (expansion) optional |
|
|
|
|
| logical output | 2 relay outputs |
| 1 relay output (extension) |
| 4-20mA analog output (expansion) |
| Run the command by typing | LCD keypad display unit given |
| Control Terminal Setting |
| Communication protocol (Modbus) optional |
| 485 extranet communication (extension) optional |
| LCD Chinese display | Display a variety of motor parameters such as current, voltage,
alarm, etc. |
| display unit | Key lock and | Realize partial or total locking of keys and define the function
range of some keys to |
| Function Selection | prevent misoperation |
| Protection and monitoring | Over-voltage, under-voltage, overload, over-temperature, phase
loss, over-current and stall protection |
| Indoors, out of direct sunlight, free of dust, corrosive, flammable
gases, oil mist, water vapors, dripping water or salts, etc. |
| Location |
| matrix | altitude | Altitude over 1000m, should reduce the capacity of use accordingly,
every increase of 100m, the current is reduced by 0.5%. |
| -10℃+40℃ |
| Ambient Temperature | Above 40℃, the capacity should be reduced accordingly, and the
current will be reduced by 2% for every increase of 1℃. |
| Temperature | Less than 95RH, no water droplet condensation |
| Vibration | Less than 5.9m/s²(0.6g) |
| Storage Temperature | ~40℃~70℃ |
| Protection class | IP20 |
| framework | Cooling method | Radiator, natural cooling |
| Installation | Cabinet mounted |
| extended function | Multi-function, I/0 function, analog function, air compressor
control, motor monitoring function |
