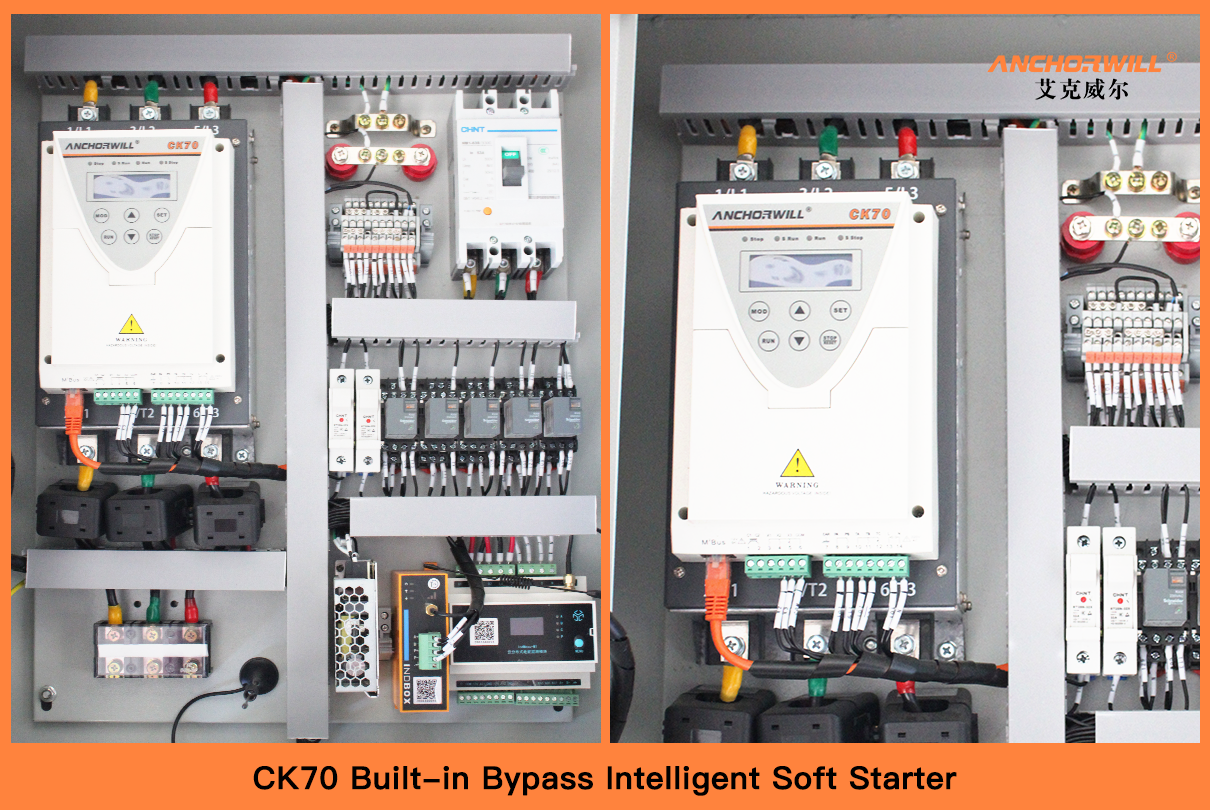

CK70 Built-In Bypass Soft Starter Use DSP Central Processing Unit
Built-In Bypass Soft Starter Overview
CK70 series intelligent soft starter with built-in bypass is a
brand-new product optimized and launched on the basis of our CK60
economic soft starter.
Based on the CK60 economic soft starter, the CK70 series is a
brand-new product optimized and launched, and its overall
performance has been greatly improved to become the preferred
product for high-performance drive control of general machinery.
It has become the preferred product for high-performance drive
control of general-purpose machinery. The product adopts today's
international advanced level of power electronics technology and
microprocessor
power electronics technology and microprocessor technology, and
adopts high-performance DSP as the central processor to ensure the
real-time, superior
It adopts high performance DSP as the central processor to ensure
the real-time, superiority and safety of the machine control
system. CK70 soft starter is not only suitable for fans, pumps, but
also for conveyors.
CK70 soft starter is not only suitable for fans and pumps, but also
suitable for conveyor belts, compressors, crushers and other
occasions with heavy load and fast response.
CK70 soft starter is not only suitable for fans and pumps, but also
suitable for conveyor belt, compressor, crusher and other occasions
with heavy load and fast response.
Built-In Bypass Soft Starter Specifications
| ITEM | Project Description |
| Applicable standards | GB14048.6-2016(IEC947-4-2) |
| Applicable motor type | Squirrel-cage three-phase asynchronous motors |
| Motor power | 11A……1260A(5.5~630kW) |
| importation | Control Voltage | AC220V±15%;50Hz/60Hz;AC110V±15% |
| Rated Voltage | AC380V±15%;50Hz/60Hz;660V±15% |
| Adjustable start time | 1～120s adjustable |
| Adjustable stopping time | 0～120s adjustable |
| control mode | 1.Ramp voltage 2.Ramp current 3.Current limit mode |
| I/0 | Logic Inputs | 3 channels (X1~X3) |
|
| Analog Outputs | 1 channel 4~20mA/0~10V |
| Relay Output | 2 relay outputs |
| Run the command by typing | Keyboard display unit setting, control terminal setting |
| RS485 communication given. |
| Communication | Integrated communication protocols | Standard Modbus protocol, 1 channel |
| Display Unit | LCD display | Can display current, voltage, alarm and other motor parameters |
| Protection and monitoring | Short-circuit, over-voltage, overload, under-voltage, phase loss,
over-current, temperature protection |
| | Indoor, free from direct sunlight, dust, corrosive, flammable
gases, oil mist, water vapor, dripping water or salt. |
| matrix | Location | Water vapor, dripping water or salt, etc. |
|
|
| altitude | Altitude more than 1000m, the capacity should be reduced
accordingly, every increase of 100m, the current is reduced by
0.5%. |
| environmental temperature | -10℃~+40℃. |
| Above 40℃ shall be used with reduced capacity |
| For every increase of 1℃, the current shall be reduced by 2%. |
| Temperature | Less than 95%RH, no water droplet condensation. |
| Vibration | Less than 5.9m/s2(0.6g) |
| Storage Temperature | -40℃~70℃ |
| framework | Protection class | Ip20 |
| Cooling method | Radiator, natural cooling |
| Installation | Vertical installation in cabinet |
Operating environment
The altitude of the installation place is not more than 1000m above
sea level; if it is more than 1000m above sea level, it should be
used with reduced capacity;
The ambient temperature is -10～40℃, above 40℃, the capacity should
be reduced, and the current should be reduced by 2% for every
exceeding 1℃.
Ambient humidity ≤95%RH, no water condensation;
●Indoor without corrosive gas that destroys metal and insulating
materials;
●No direct sunlight, no dust, flammable gas, oil mist, dripping
water or salt.
