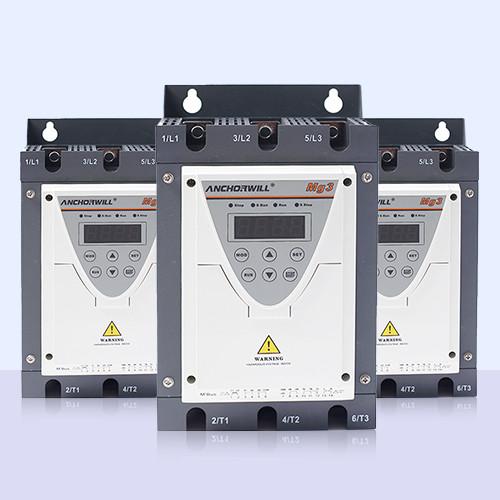

MG3 Soft Starter Frequency Converter Soft Starters For Water Pumps
And Fans
Product Overview
Through the research and exploration of water industry
applications, Ackwell has developed the Mg3 series of pump and
fan-specific soft starters for the water industry, which utilizes a
unique pump stopping algorithm to completely solve the "water
hammer effect" and mechanical shock. The design adopts the
industry-specific module approach, which can realize customized
control solutions according to customer requirements, and is easy
to upgrade and maintain the equipment.
Easy to upgrade and maintain the equipment.
Operating environment
The altitude of the installation place is not more than 1000m above
sea level; if it is more than 1000m above sea level, it should be
used with reduced capacity;
The ambient temperature is -10～40℃, above 40℃, it should be used at
a reduced capacity, and the current should be reduced by 2% for
every 1℃; ● The ambient humidity is ≤95%RH, without water
condensation.
Ambient humidity ≤95%RH, no water condensation.
●Indoors where there is no corrosive gas that destroys metal and
insulating materials;
●No direct sunlight, no dust, flammable gas, oil mist, dripping
water or salt, etc.
| Item | Project Description |
| Applicable standards | GB14048.6-2016(IEC60947-4-2:2011) |
| Applicable motor type | Squirrel-cage three-phase asynchronous motors |
| Motor power | 18A ～ 1260A(7.5～630kW) |
| input | Three-phase power supply | AC380V:50Hz±5% |
| Control power supply | AC220V:50Hz±5%. |
| Allowable Voltage | Continuous voltage fluctuation not more than ±10%, short-term
fluctuation not more than 15%～+10 |
| Fluctuation range | Voltage imbalance rate:<3%;frequency:±5% |
| Adjustable start time | 1～60s adjustable |
| Adjustable stopping time | 0～60s adjustable |
| I/0 | Logic Inputs | 3 logic inputs (start, stop, emergency stop) |
| Relay outputs | 2 relay outputs (bypass, alarm (normally open, normally closed)) |
| Run command input | LED keypad display unit given, control terminal given |
| Protection and monitoring | Phase failure, operation overcurrent |
Selection Precautions
● Fully understand the characteristics and usage of the load;
● The soft starter size should always be larger than the current
value (rated operating current) of the motor. In case of deviation
from the rated value, a larger soft starter must be selected;
● Installation altitude; no more than 1000 m, above 1000 m,
consider capacity reduction.
